Technical Parameters
| No. | Name | Specification | Note |
|---|---|---|---|
| 1 | Power Supply | 220V/50Hz | |
| 2 | Power | 4500W | |
| 3 | Frequency | 60-90K | |
| 4 | Sealing Diameter | 10-140mm | |
| 5 | Sealing Speed | 1–80 m/min | |

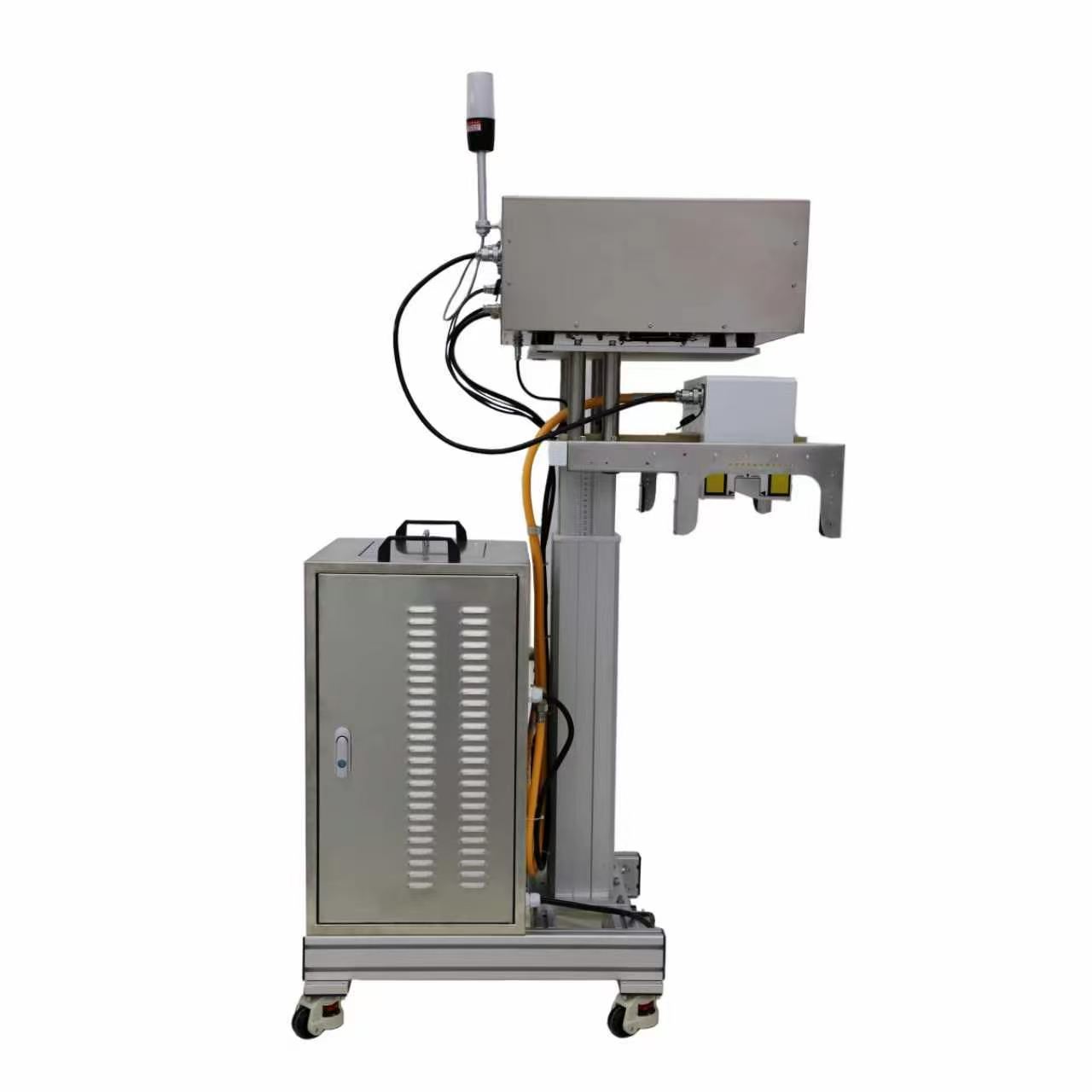

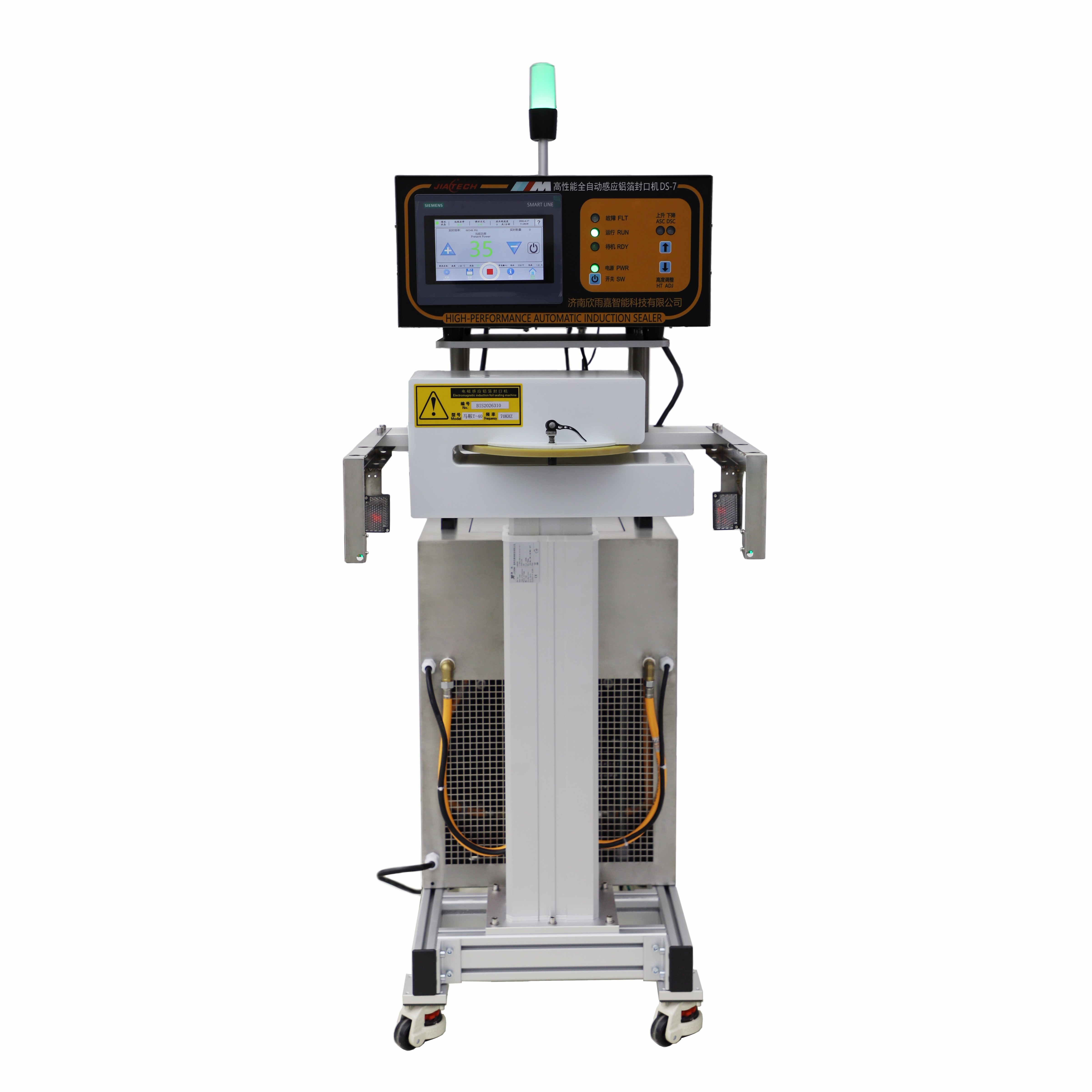

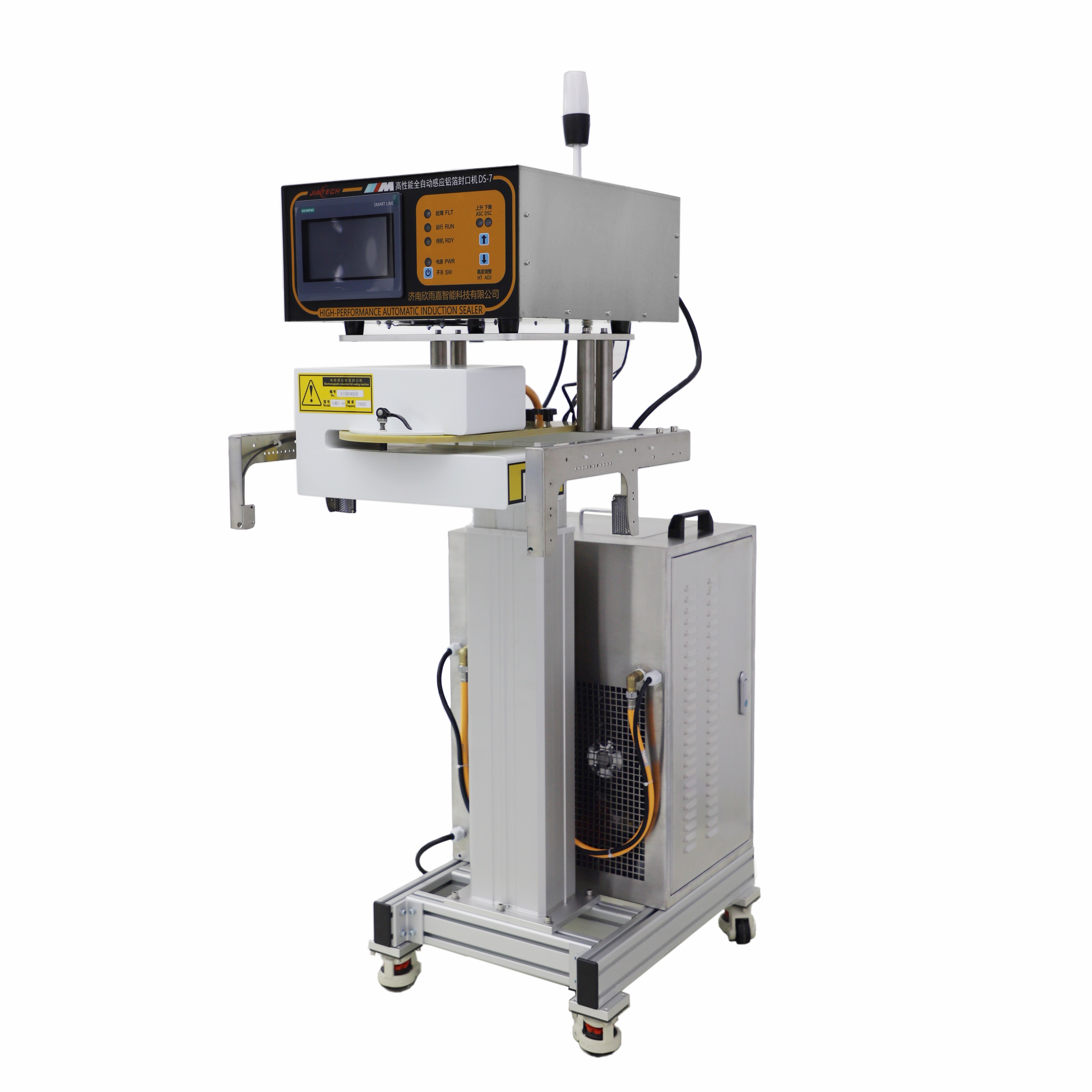

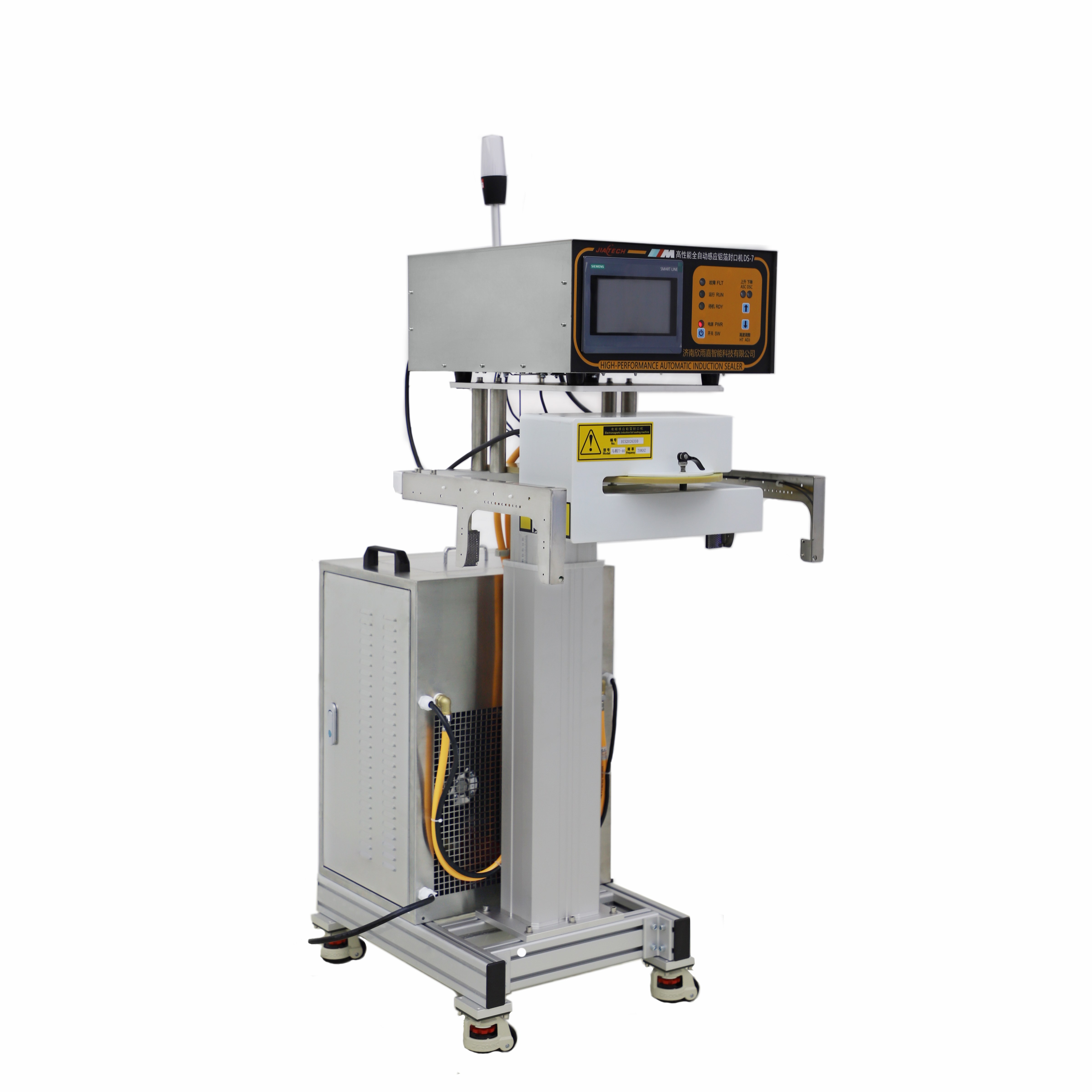

| 6 | Machine Structure | Upper and lower split type | |
| 7 | Overall Machine Dimensions | 865*604*1210mm | LWH |
| 8 | Probe Dimensions | 420*150*232mm | LWH |

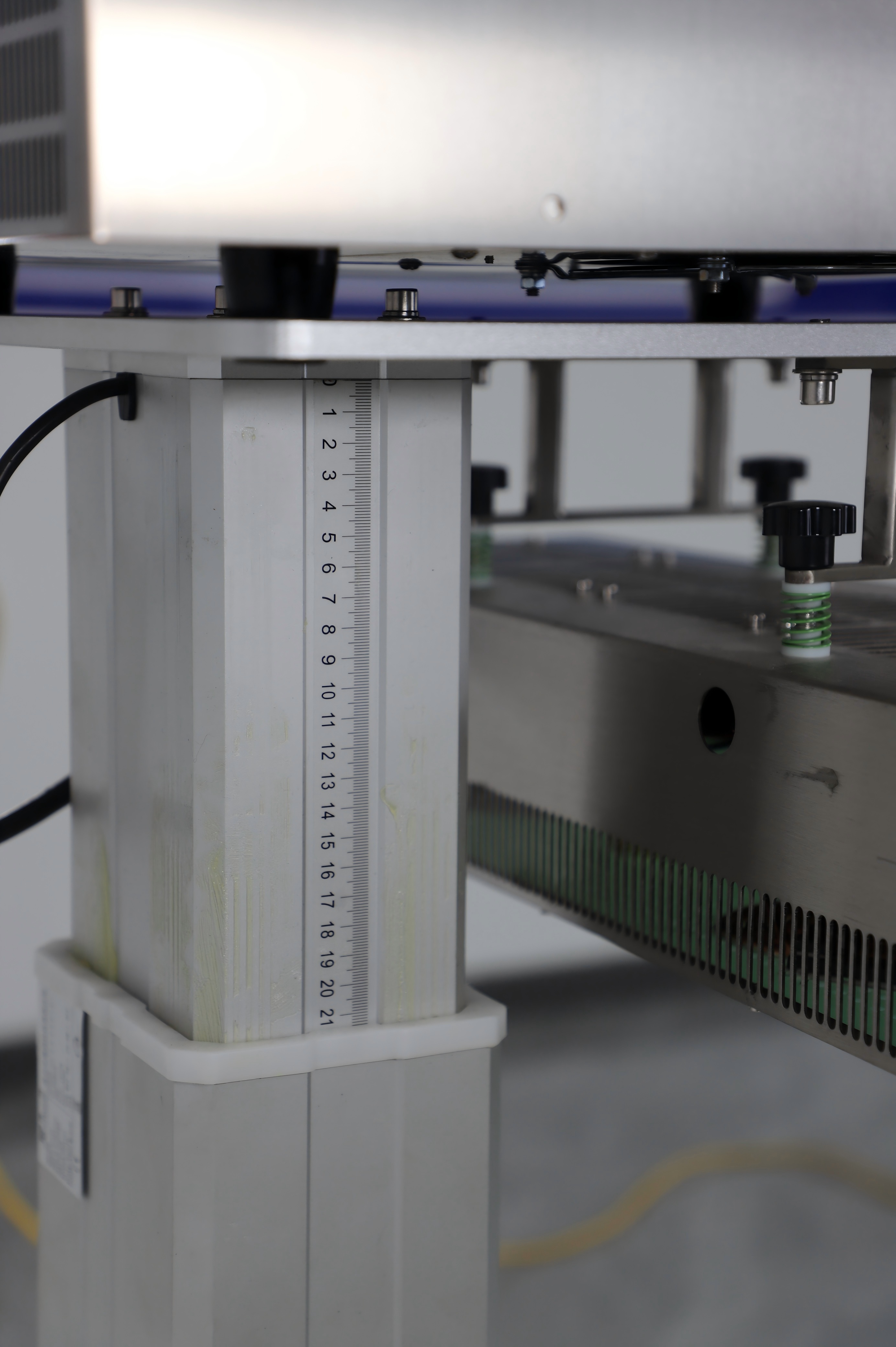

| 9 | Induction Head Adjustment Height Range | 710-1315mm | Sum of bottle height and conveyor belt height should be within this range |
| 10 | Material | 304 stainless steel housing | |
| 11 | Built-in Function1 | Bottle jam stop and alarm function | |
| 12 | Built-in Function2 | 485 remote control function | Optional |
Core Advantages:
Product Features
1.FPGA + MCU dual-core Intelligent control, high speed & stable performance.

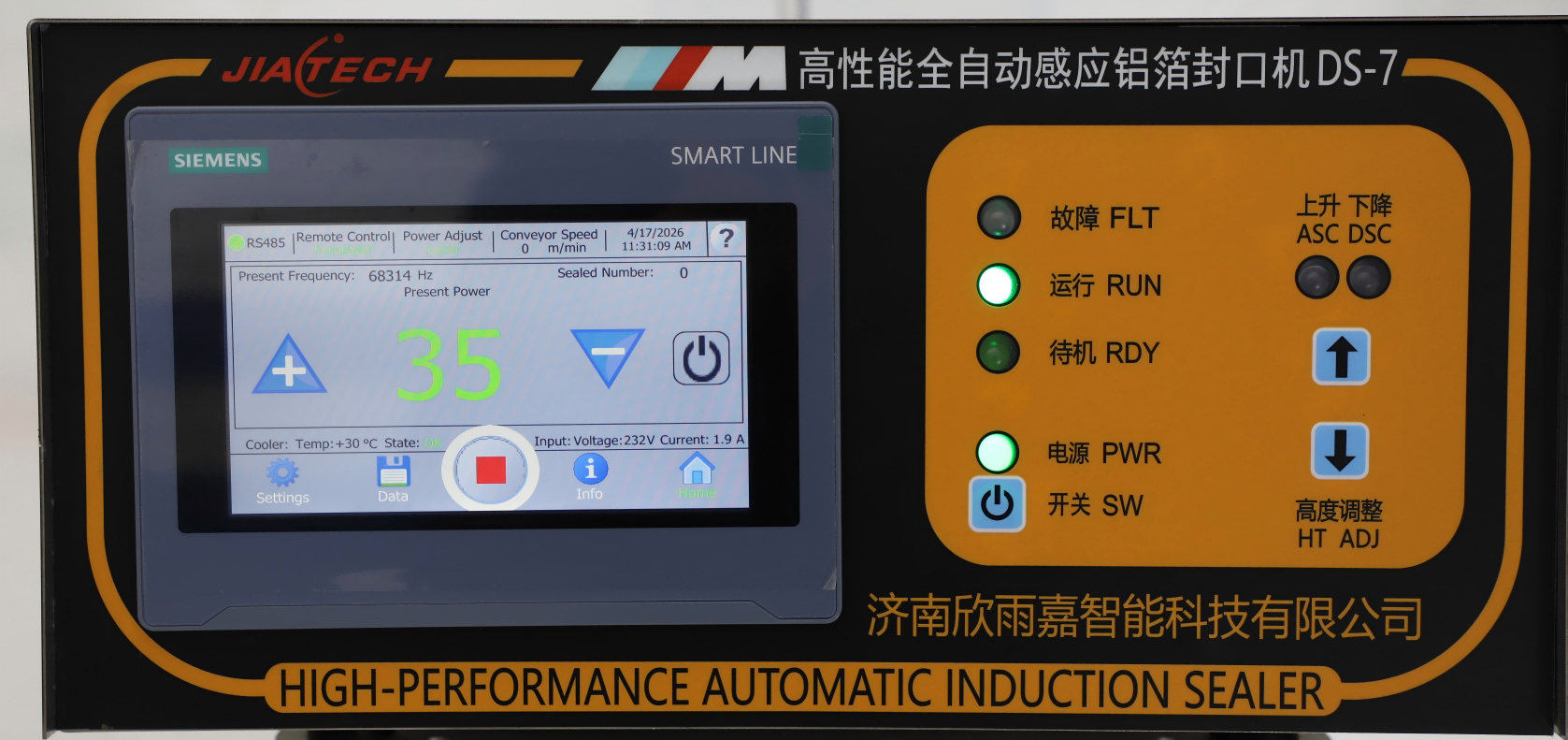

2.Adopts Siemens touch screen for easy parameter setting and adjustment.
3.overcurrent, overvoltage and undervoltage protection, power-on self-test, high temperature alarm & stop for induction head.
4.Famous-brand imported core parts, reliable and durable.

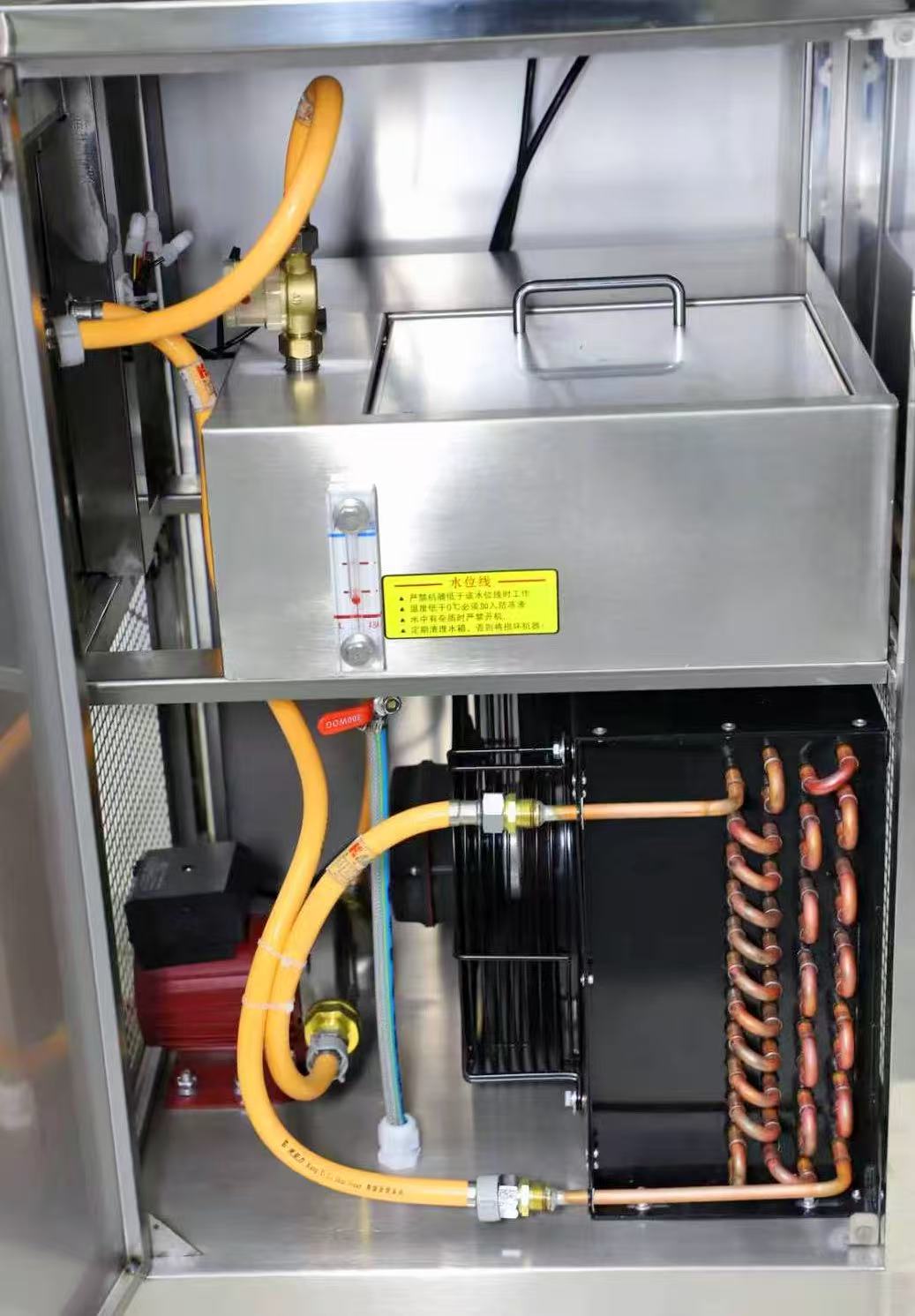

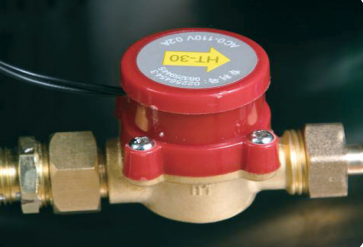

5.Fully sealed intelligent tank for dustproof heat dissipation, with high-power pump and anti-corrosion pipes for stable long-term cooling.
