| No. | Name | Specification | Remarks |
|---|---|---|---|
| 1 | induction Foil Sealer | DS-6 | |
| 2 | Power Supply | 220V/50Hz | |
| 3 | Power | 4000W | |
| 5 | Sealing Diameter | 10-150mm | |
| 6 | Sealing Speed | 1-70m/min | |
| 7 | Equipment Structure | Upper and Lower Split Type | |
| 8 | Overall Dimensions | 520*500*1100mm | (LWH) |
| 9 | Induction Head Dimensions | 420*150*218mm | (LWH) |
| 10 | Net Weight | 85Kg | |
| 11 | Material | 304 Stainless Steel Casing |
Equipment Features:
1.Power output is further enhanced, with peak power increased by 50% compared with the first-generation digital sealing machines. It delivers more precise and efficient control and supports long-term non-stop operation.
2.Equipped with FPGA digital chip and advanced software design, it performs high-speed real-time calculation on various working parameters and adjusts power output instantly.

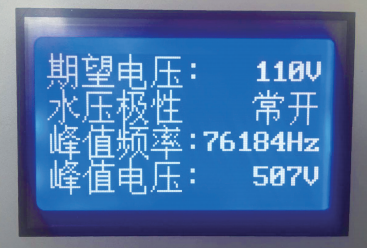

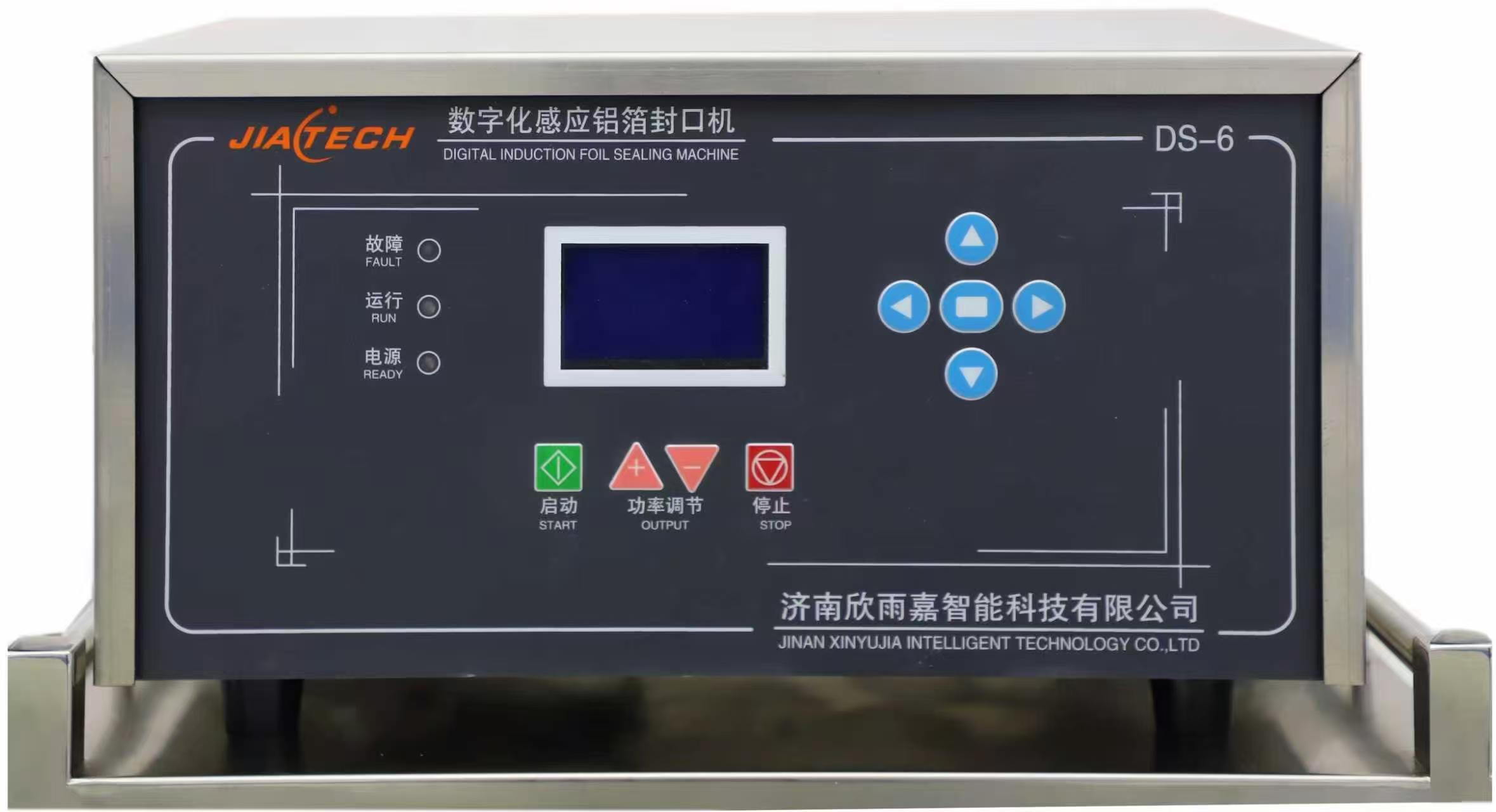

3.LCD screen displays working status, system parameters and fault information in real time.
4.Water flow and temperature sensors are connected to the FPGA chip. The FPGA processor monitors the water circuit system in real time to ensure stable heat dissipation for the induction head.
5.Adopts RS-485 communication to transmit data to host computer.

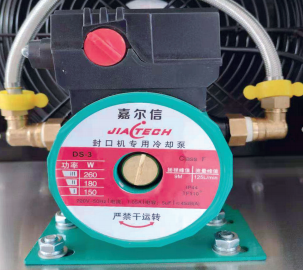

6.Upgraded high-power stainless steel pump head and silent cooling pump. Intelligent cooling system provides optimal heat dissipation for induction head.
Core Components
Famous-brand imported core parts, reliable and durable.
