Over 20 years focused on R&D and manufacturing of induction cap sealer

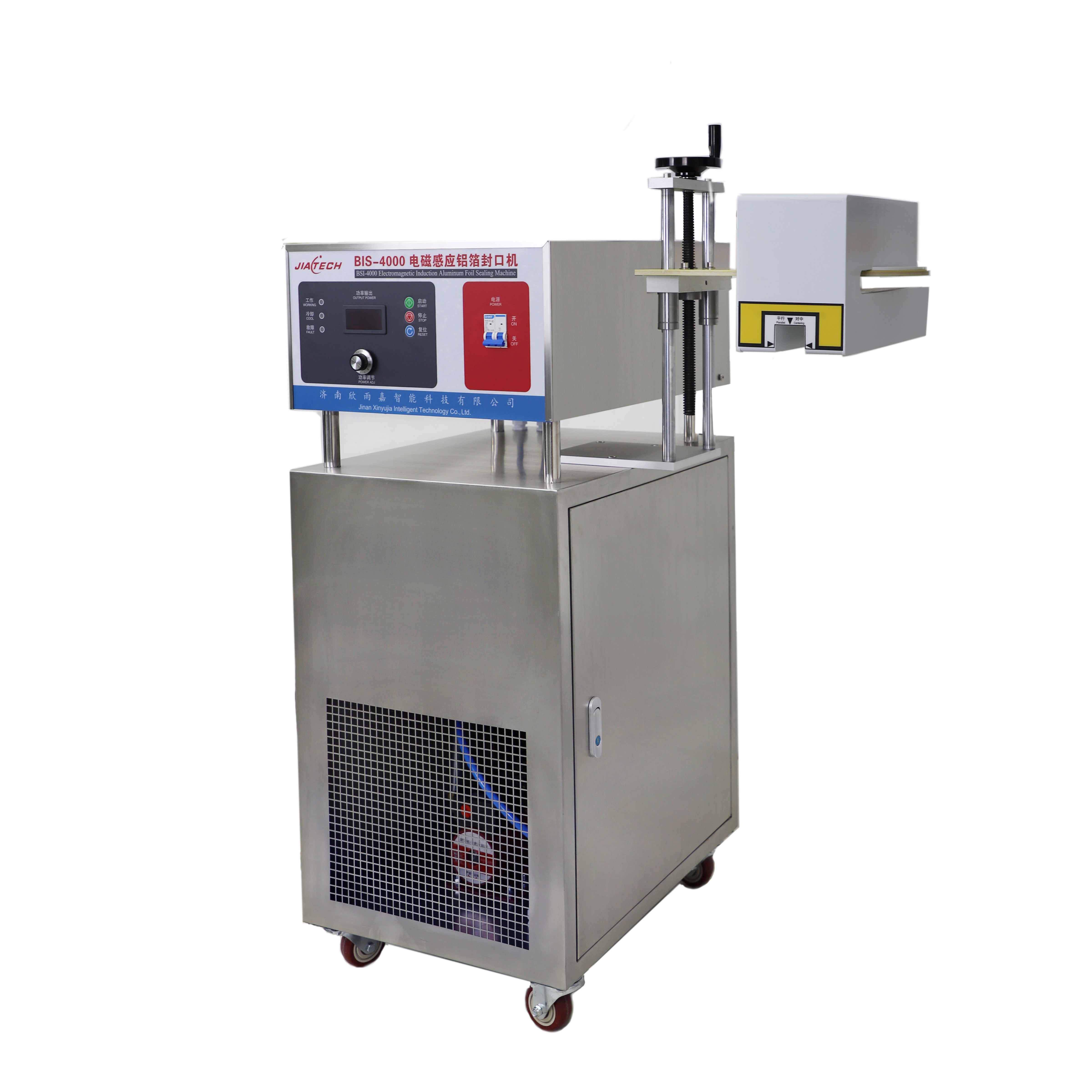

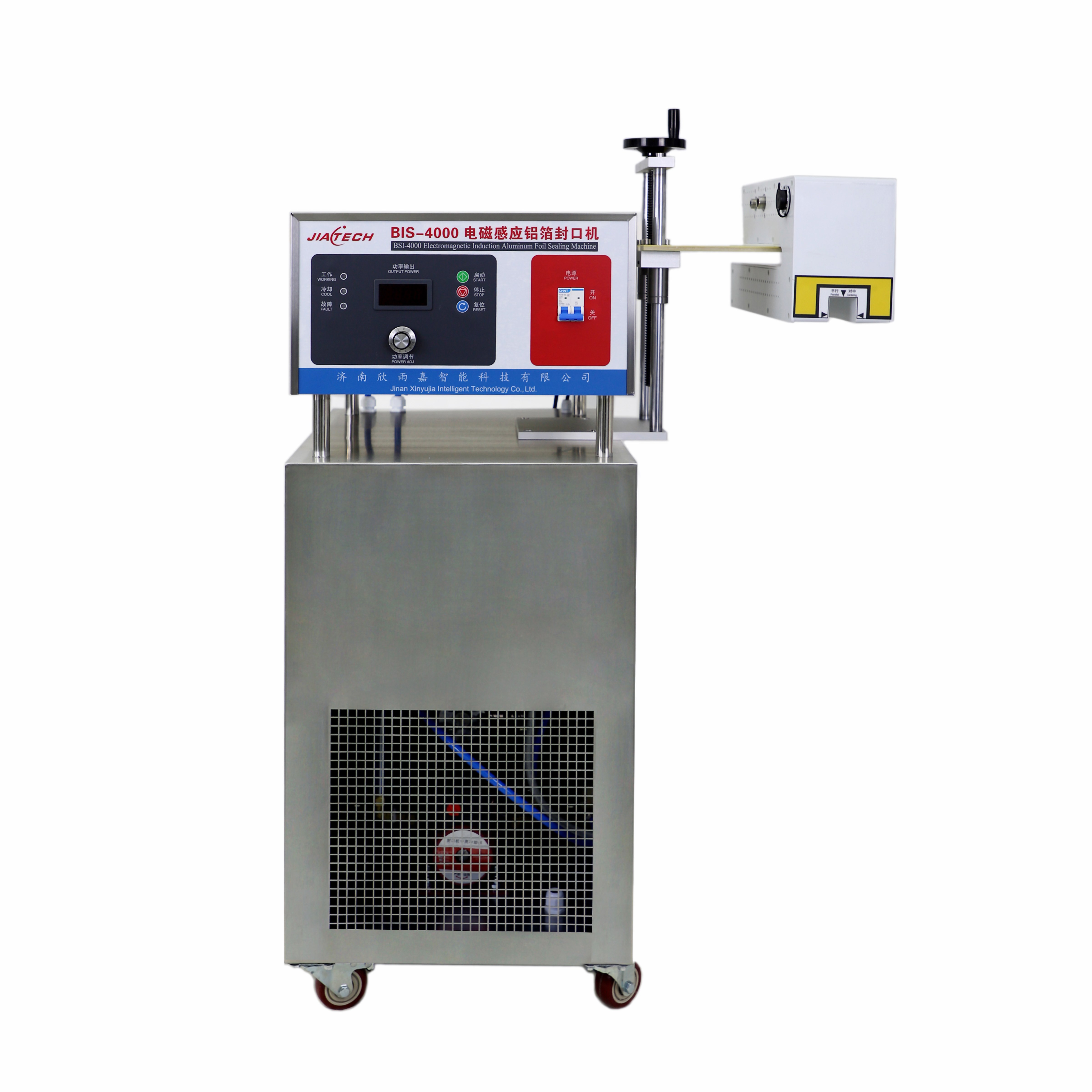

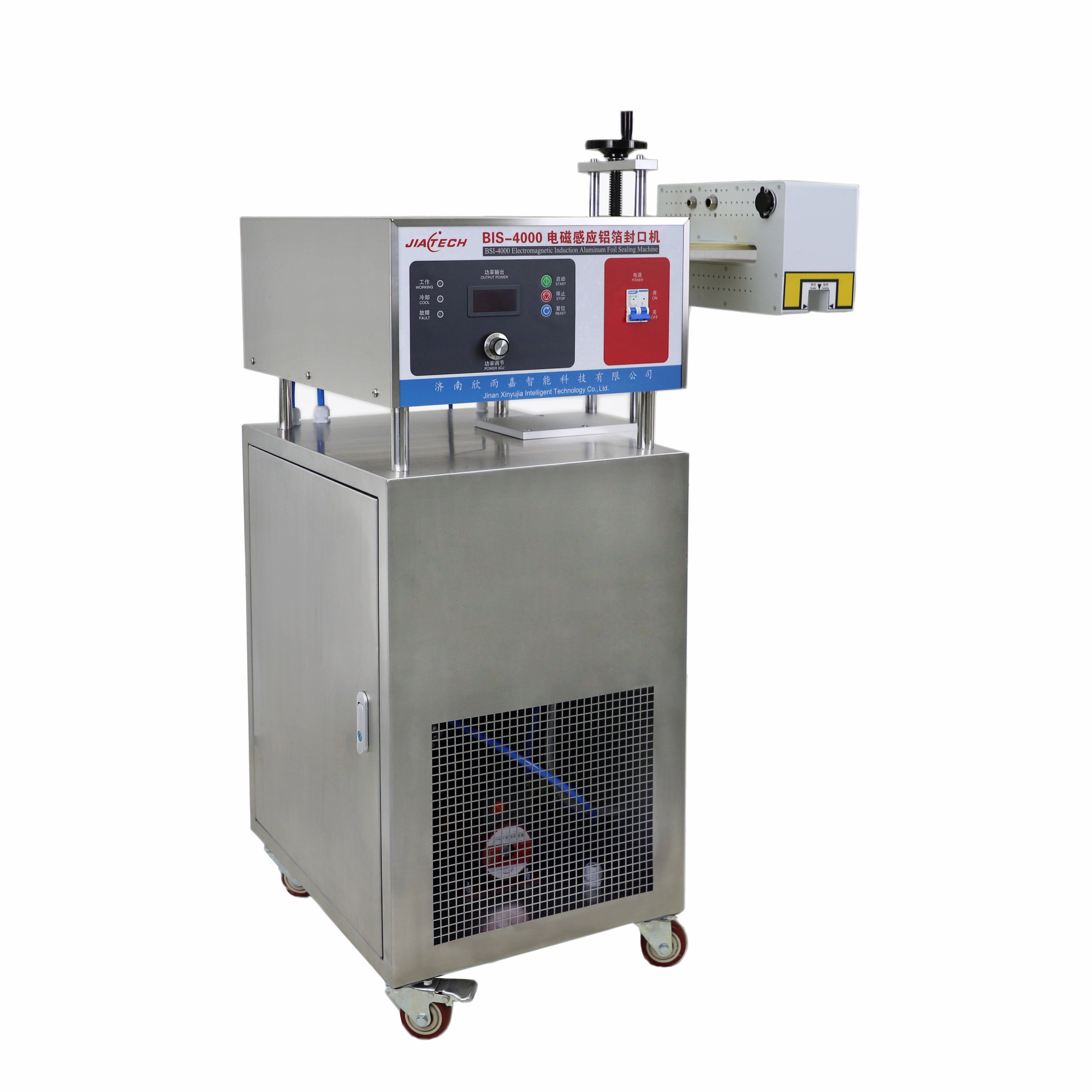

BIS-4000 Induction sealer

Our self-developed and manufactured BIS series electromagnetic induction sealing machines adopt the latest international power electronic technology and advanced power inverter technology, equipped with high-power CMOS switching components from top-tier American semiconductor manufacturers. The equipment features stable performance and long service life. Its modular structure design effectively reduces failure rate, keeping our overall technology at the leading domestic level.
Tel:+86 18668916329
Email:Jarsen@jexseal.com
WhatsApp:+86 15689725366

Category :
Analog Circuit Machine Series
Browse number : ...
Release time : 2026-05-19

MESSAGE

Detailed Description

Technical parameters:

No.	Name	Specification	Remarks
1	Power Supply Voltage	220V/50Hz
2	Oscillation Power	4000W
3	CMOS Current Capacity	25℃：43.3A
4	Sealing Diameter	25-65mm	Customizable upon request
5	Sealing Speed	1-30 m/min
6	Induction Head Height Adjustment Range	800—1250mm	Sum of bottle height and conveyor belt height should be within this range
7	Equipment Weight	68Kg
8	Main Unit Dimensions	600×460×1100mm (L×W×H)
9	Sensor Dimensions	650×125×95mm (L×W×H)

Equipment Features

Control System: Transistor modular integrated circuit

Equipped with voltage stabilizing device, reduce grid fluctuation impact on sealing quality

Cooling System: Internal circulating water cooling with large fans and heat sinks.

Exclusive water-cooled high-frequency resonant capacitor fits diverse bottle caps.

Sealing Performance: Stable sealing effect unaffected by residual liquid at bottle mouths.

Performance Features

Adopt modular design & full-bridge rectifier inverter circuit; optocoupler isolation lowers interference.
Negative feedback output circuit enables automatic output power adjustment per load to ensure stable sealing.
Built-in overvoltage, overcurrent, overheat and water shortage protection with light alarm, extending service life.
Dual-circulation dual cooling system supports long-time continuous stable operation.

Application Scope

Suitable for aluminum foil sealing of round, square and special-shaped bottles in food, pharmaceutical, petrochemical, chemical, cosmetic and other industries.

Fast sealing speed, ideal for mass production.

微信图片_20260521133411_438_16 微信图片_20260515140125_67_4

url : https://www.jexseal.com/product/251.html

Keywords :

Previous : DS-5 Digital Induction sealer
Next : None

Frequently Asked Questions

What if the machine breaks down? Do you provide after-sales support? +

We offer 1-year free warranty for the whole machine and lifetime technical consultation. You will receive an English user manual and video installation guide. Our technical team responds within 24 hours to your after-sales requests and provides online troubleshooting. Meanwhile, we supply spare parts long-term to ensure your production is not affected.

Can the induction sealer machine be customized? +

Yes. Our full range of sealing machines (BIS series, DS series, etc.) can be customized according to your bottle mouth specifications. Simply provide us with your bottle samples, and we will adapt or tailor a machine for you to ensure perfect matching with your production line.

What about order quantity, delivery time, and shipping? +

Minimum Order Quantity: 1 unit.
Stock: All standard sealing machines are available from stock.
Lead Time: For customized machines, lead time depends on complexity; please contact us for details.
Packaging: Machines are safely packed in wooden cases.
Shipping: Sea freight with EXW, FOB, CIF, and DDP terms available. Air freight can also be arranged upon request.
