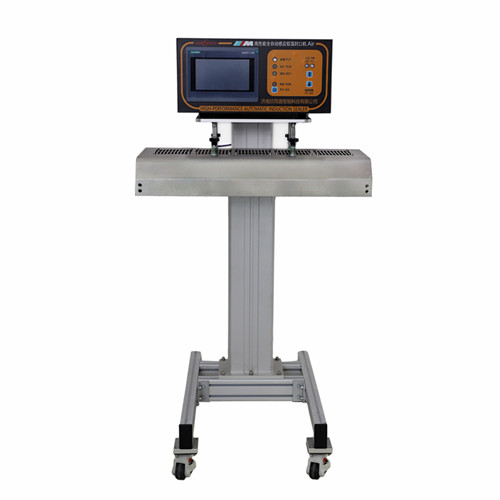

DS-7 is equipped with FPGA & MCU dual-core control and features a self-developed FPGA algorithm, enabling high-speed multi-thread operation. The device is equipped with a Siemens touch screen, supports motorized millimeter-level lifting, and optionally offers 485 remote control functionality for integration with automated production lines, along with automatic power adjustment. DS-7 incorporates internationally renowned brands such as Infineon, ensuring excellent stability and a long service life.
Digital induction sealers were first applied in the pharmaceutical industry, then expanded to pesticide and food sectors.
Compared with traditional analog circuit sealers, digital models have fully upgraded core control. FPGA+MCU digital chips replace analog circuits, enabling millisecond-level closed-loop adjustment of sealing power and frequency, effectively eliminating defective sealing caused by voltage fluctuation and bottle type differences.
It adds formula storage, automatic fault alarm and production data traceability. No manual repeated parameter adjustment needed for product switching. It can connect with production management systems to meet industry compliance standards, greatly boosting stability and productivity.

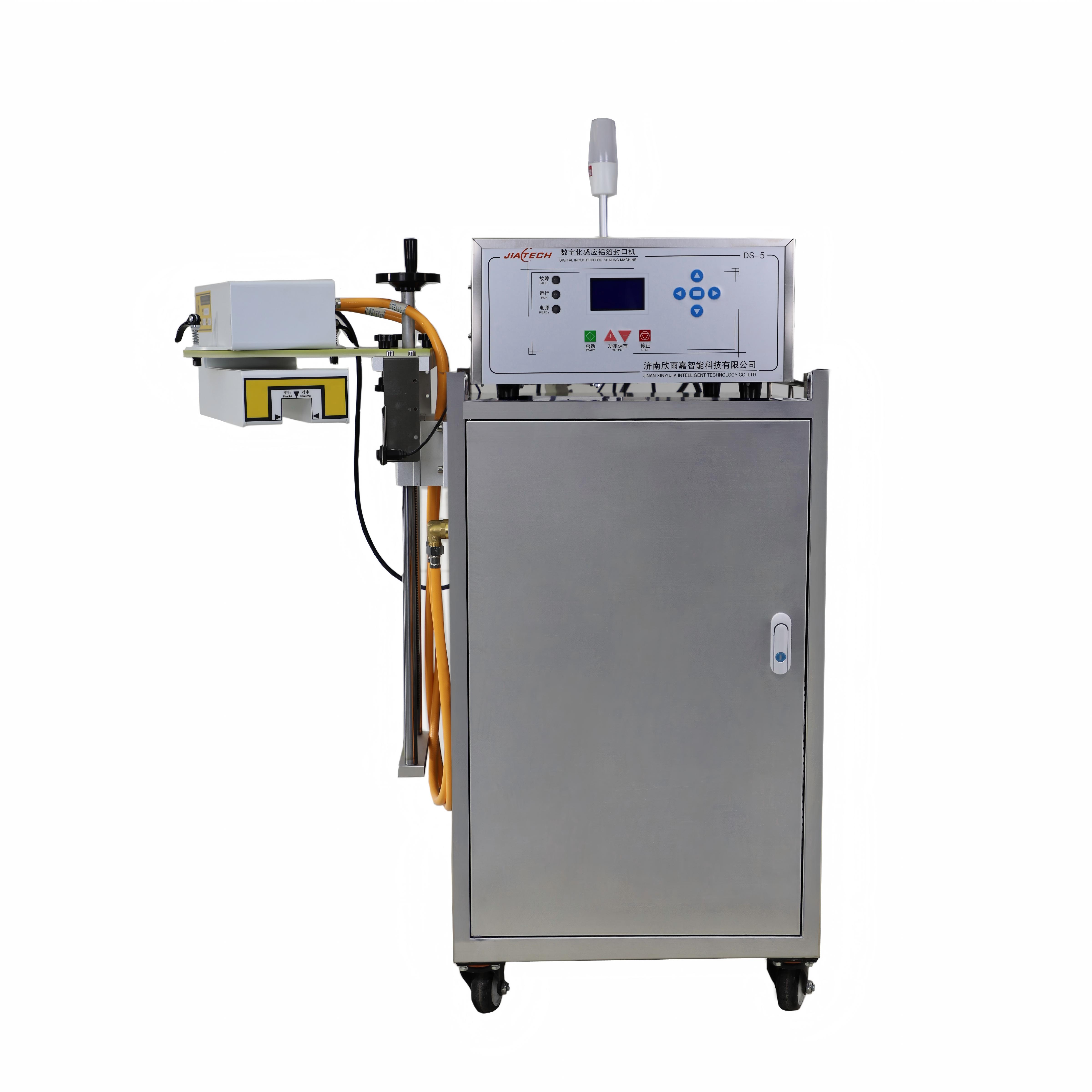

DS-5 adopts FPGA and MCU dual-core control with self-developed algorithms for high-speed multi-thread operation. It features patented rotatable induction head for wide sealing range and automatic frequency sweeping to match various heads. Fully sealed intelligent water cooling tank ensures dust isolation, efficient heat dissipation and easy maintenance.
High-performance water-cooled series for demanding production lines
4500W power, sealing speed 1-80m/min, sealing diameter 10-140mm. Equipped with Siemens touch screen and electric millimeter-level lifting adjustment, optional 485 communication for remote control.
3000W power, sealing speed 1-50m/min, sealing diameter 15-130mm with rotatable induction head. Adopts split upper-lower structure, equipped with bottle jam stop alarm.
4000W power, sealing speed 1-35m/min (10-250 bottles per minute).sealing diameter 25-65mm with rotatable induction head.
Compact and cost-effective air-cooled solutions
1500W power, sealing speed 1-15m/min, covers diameters 30-60mm and 60-110mm.
2500W power, sealing speed 1-25m/min, energy conversion efficiency over 95%.
FPGA + MCU dual-core control, high speed & stable performance
10–140mm sealing diameter, suitable for various bottle sizes

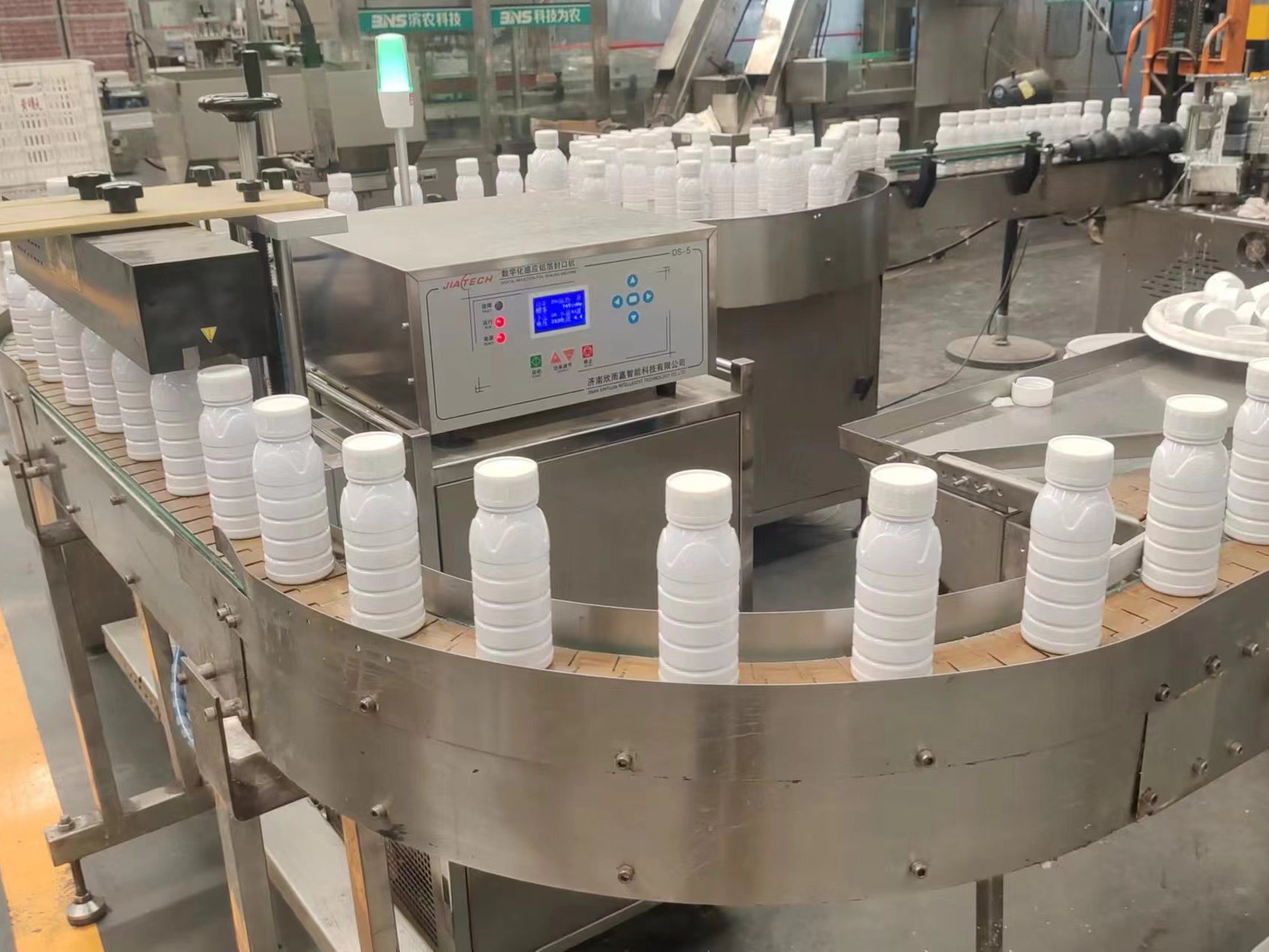

Excellent cooling system, supports long time continuous working
Over-current, over-voltage, over-temperature protection

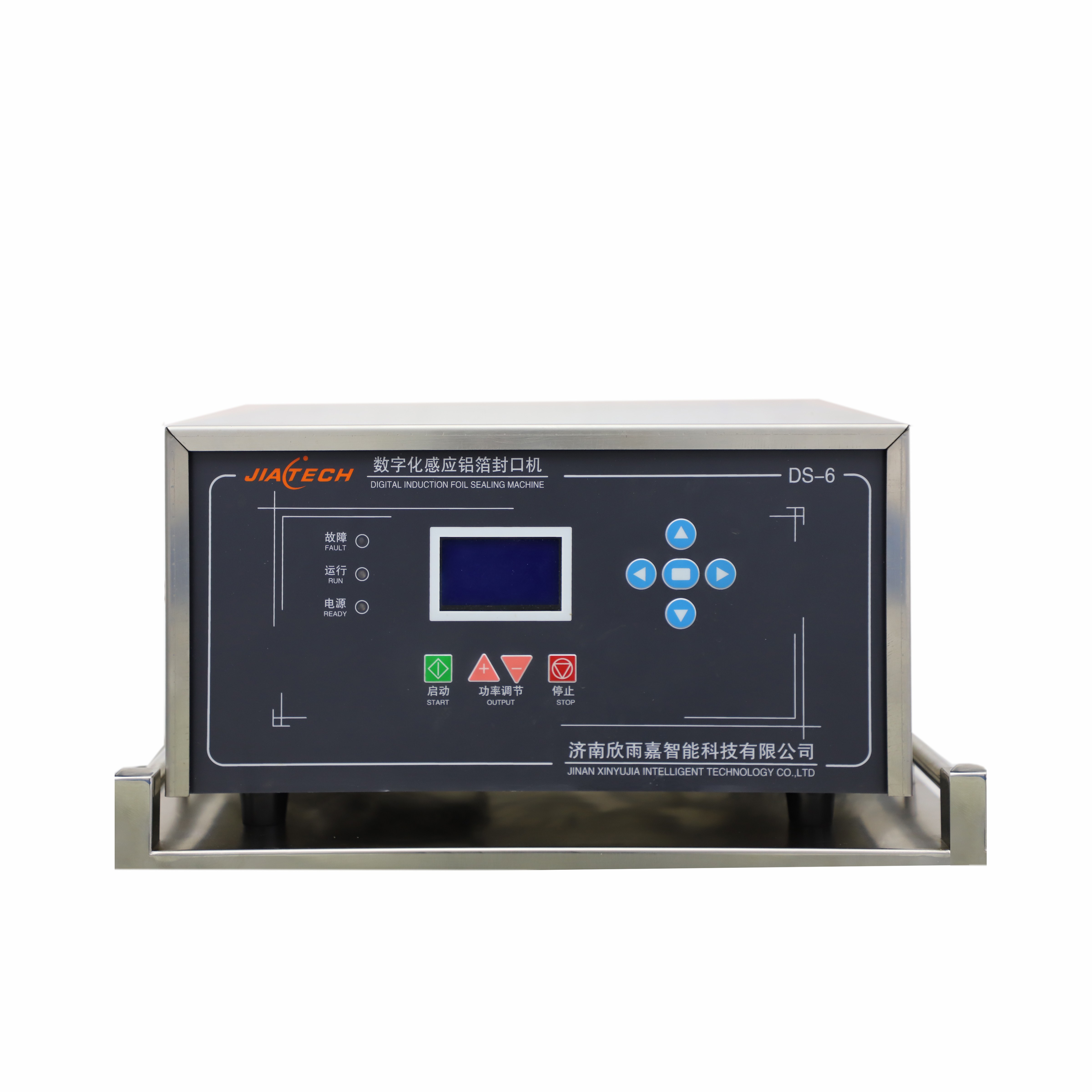

Touch screen control, easy parameter setting & adjustment
Dust-proof & efficient heat dissipation
If you have any questions about our aluminum foil induction sealers, please check the FAQ below or contact us directly.
We offer 1-year free warranty for the whole machine and lifetime technical consultation. You will receive an English user manual and video installation guide. Our technical team responds within 24 hours to your after-sales requests and provides online troubleshooting. Meanwhile, we supply spare parts long-term to ensure your production is not affected.
Yes. Our full range of sealing machines (BIS series, DS series, etc.) can be customized according to your bottle mouth specifications. Simply provide us with your bottle samples, and we will adapt or tailor a machine for you to ensure perfect matching with your production line.
Get expert advice on the perfect induction sealer for your specific needs. Our team is standing by.
